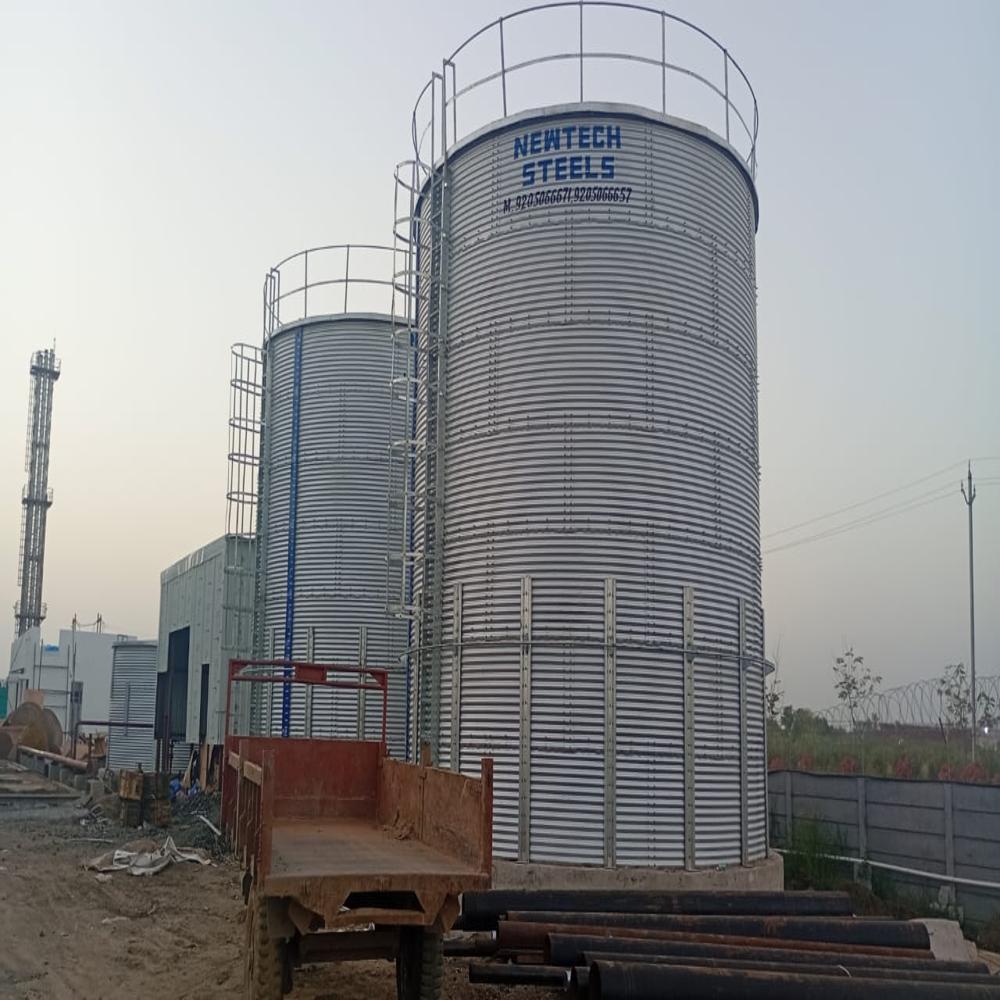

250000L Zinc Aluminium Water Tank

Get a Price/Quote

MOQ : 10000 Liters

250000L Zinc Aluminium Water Tank Specification

Material
Zinc Aluminium alloy coated steel

Dimension (L*W*H)
Diameter: Approx. 7.5m, Height: Approx. 5.65m

Grade
Zinc Aluminium Alloy Coated Steel (55% Al, 43.5% Zn, 1.5% Si)

Processing
Galvanized & Roll-formed

Tolerance
2% on dimensions and capacity

Temperature
-20C to 80C operating range

Storage Material
Water

Shape
Cylindrical

Condition
NEW

Thickness
1mm to 4mm (customizable as per requirement)

Application
Industrial

Capacity
250,000 Liters (250 KL)

Size
250000L

Product Type
Zinc Aluminium Water Tank

Color
Grey paint coated

Panel Height
Approximately 1.25m per panel

Maintenance
Minimal, easy to clean

Tank Installation Type
Bolted, modular, onsite assembly

External Coating
Protective polyester paint

Sealing Material
Food grade EPDM rubber gaskets

Leak-proof Design
Double locking system with gasket sealing

UV Protection
Yes, UV stabilized

Wind Load Resistance
Designed as per site requirements

Corrosion Resistance
High

Accessories
Inlet, outlet, drain, overflow, manhole, ladder

Compliance Standards
IS, ASTM, or as per client specification

Color
Metallic silver with blue branding

Roof Type
Optional dome or conical

Tank Life Expectancy
30+ years with proper maintenance

250000L Zinc Aluminium Water Tank Trade Information

Minimum Order Quantity
10000 Liters

Supply Ability
10 Liters Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About 250000L Zinc Aluminium Water Tank

Zincalume Tata Bluescope made marine grade Zinc-Alume -Silicon Alloy steel of AZ 150 or AZ 200,Yield strength of minimum 300 MPa to maximum 550 MPa depending on the application. ZINCALUME steel complies with AS1397, ASTM A792M, IS 15961 and ISO 9364 standards. Zincalume Bolted Panel Tanks are fabricated using the best grade of Steel as MOC which is coated with 55% Aluminium, 43.5% Zinc & 1.5% Silicon. Hence, they are known as Zinc Aluminium Tanks or Galvalume Tanks. It is lightweight, durable and versatile. Zincalume sheet has 40-50 years of life and comes with 20 years of Corrosion Warranty. These tanks last up to four times longer than galvanized steel.

Long Lifespan and Superior Durability

With a life expectancy extending beyond 30 years given proper maintenance, this water tank offers peace of mind for industrial users. Its robust Zinc Aluminium alloy construction ensures exceptional resistance to corrosion, harsh climates, and UV damage. These qualities contribute to minimal maintenance requirements and a consistently reliable performance, making it a prudent investment for long-term water storage needs.

Flexible Installation and Customization

Designed for bolted, modular, onsite assembly, the tank allows effortless transport and installation even in challenging locations. Its height, thickness, and roof design are customizable to suit specific needs, while compliance with IS and ASTM standards assures quality and safety. The optional dome or conical roof can be tailored as per client requirements, extending the tank's adaptability for diverse industrial applications.

FAQ's of 250000L Zinc Aluminium Water Tank:

Q: How is the 250,000L Zinc Aluminium Water Tank installed onsite?

A: Installation is performed onsite using a bolted, modular assembly process. Panels, which are typically 1.25 meters in height, are transported and then assembled at the location. This approach facilitates efficient setup, even in areas with limited access, and allows for easy customization to match site-specific requirements.

Q: What measures ensure the tank's high resistance to corrosion and leaks?

A: The tank is made with a Zinc Aluminium alloy coated steel that offers outstanding corrosion resistance. Its leak-proof design utilizes a double locking system with food-grade EPDM rubber gaskets for joints, and the tank exterior is protected by a durable polyester paint coating. These features collectively guard against both rust and water leakage.

Q: When is maintenance required and how easy is it to clean this tank?

A: The tank requires only minimal maintenance due to its corrosion-resistant materials and hygienic gasket system. Periodic inspections for external coatings and gaskets are advisable, but cleaning is straightforward thanks to accessible manholes and smooth internal surfaces.

Q: Where can this water tank be used and what industries benefit most?

A: This tank is ideal for industrial applications across India, from manufacturing to processing facilities. Its large capacity, temperature tolerance (-20C to 80C), and robust wind and UV resistance make it suitable for a wide range of environments requiring dependable bulk water storage.

Q: What is the typical process for ordering and customizing the tank?

A: Clients can specify desired dimensions, thickness (1mm to 4mm), and roof type. After confirming compliance standards (IS, ASTM, or client-specific), the manufacturing process involves precision roll-forming and galvanizing panels before assembly onsite. Accessories like inlet, outlet, and ladders can also be customized.

Q: How does the tank's design contribute to water quality and safety?

A: Water safety is maintained by using food-grade EPDM rubber for gaskets and by ensuring a leak-proof structure. The materials and coatings comply with industry food-grade standards, so the stored water remains uncontaminated and safe for industrial use.

Q: What are the main benefits of choosing this Zinc Aluminium tank over traditional options?

A: Major advantages include a long service life, superior corrosion and UV resistance, modular onsite installation, minimal maintenance needs, customizable options, and compliance with stringent standards, all of which make this tank a cost-effective and reliable water storage solution.
