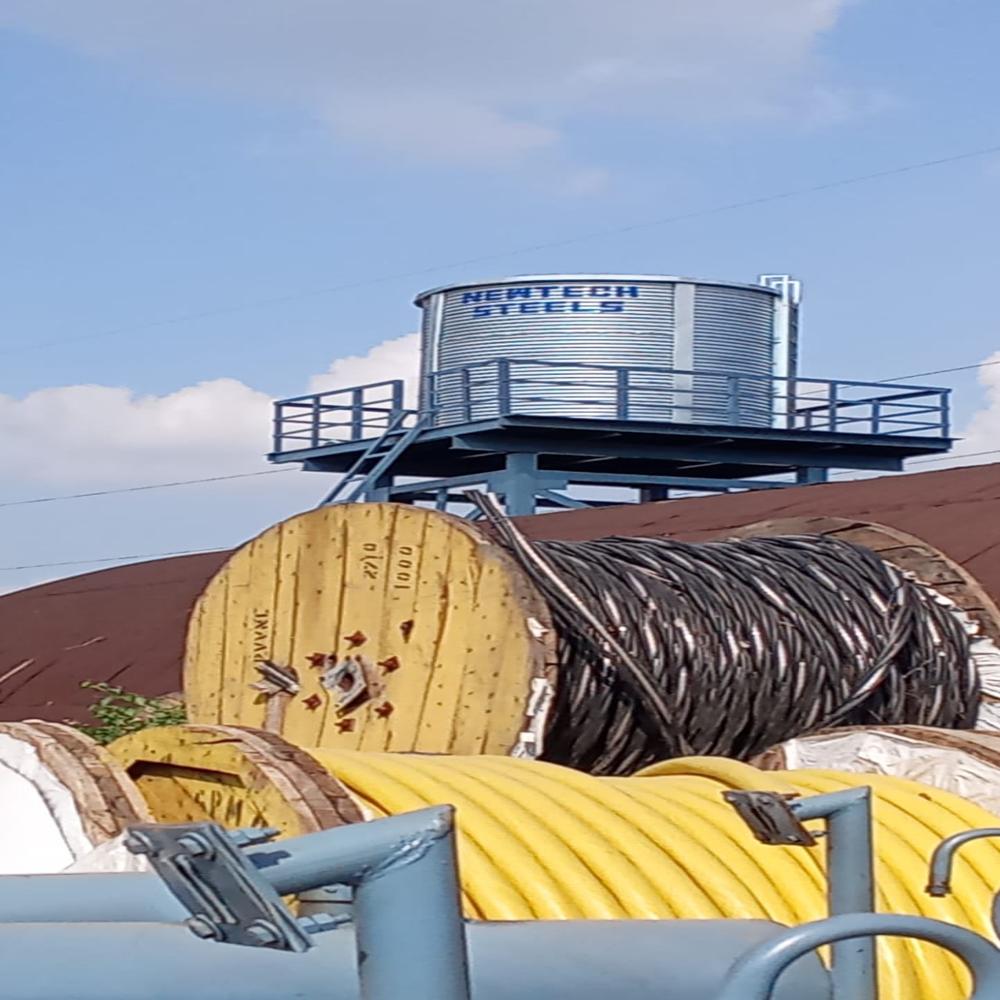

Overhead Zinc Aluminium Tank

Name: Overhead Zinc Aluminium Tank
Brand: Newtech Steels
Price: 3 INR
Availability: InStock

Price 3 INR/ Liter

Get a Price/Quote

MOQ : 1000 Liters

Overhead Zinc Aluminium Tank Specification

Condition
NEW

Grade
Zinc-Aluminium Alloy

Tolerance
5 mm

Application
Overhead water storage

Capacity
Available from 1000 to 100000 liters

Processing
Pre-coated, roll formed and factory finished

Dimension (L*W*H)
Customizable as per requirement

Accessories
Manhole, ladder, inlet, outlet, overflow pipe, drain valve

Material
Zinc-Aluminium (ZA) alloy steel sheets

Leakage Protection
Seamless and rust-proof joints

UV Stability
UV-resistant outer layer

Surface Finish
Galvalume coated for corrosion resistance

Wall Thickness
Ranges from 0.5 mm to 1.5 mm

Shape
Cylindrical, rectangular or custom

Temperature Range
Suitable for -10°C to 60°C

Lifespan
Up to 40 years

Color
Silver / Metallic Grey

Maintenance
Minimal, easy to clean surface

Installation
Easy panel bolted assembly

Insulation
Optional thermal insulation available

Portability
Modular design for easy relocation

About Overhead Zinc Aluminium Tank

Zincalume Tata Bluescope made marine grade Zinc-Alume -Silicon Alloy steel of AZ 150 or AZ 200,Yield strength of minimum 300 MPa to maximum 550 MPa depending on the application. ZINCALUME steel complies with AS1397, ASTM A792M, IS 15961 and ISO 9364 standards. Zincalume Bolted Panel Tanks are fabricated using the best grade of Steel as MOC which is coated with 55% Aluminium, 43.5% Zinc & 1.5% Silicon. Hence, they are known as Zinc Aluminium Tanks or Galvalume Tanks. It is lightweight, durable and versatile. Zincalume sheet has 40-50 years of life and comes with 20 years of Corrosion Warranty. These tanks last up to four times longer than galvanized steel.

Exceptional Durability and Corrosion Resistance

Constructed from pre-coated Zinc-Aluminium alloy steel sheets, this overhead tank is finished with a Galvalume layer to provide long-term resistance against corrosion and environmental wear. Its robust design guarantees stability and strength in various climates, making it a reliable solution for water storage indoors or outdoors.

Highly Customizable for Varied Applications

Available in cylindrical, rectangular, or custom configurations, the tank can be tailored to meet your space and capacity needs. Whether you require storage for residential, commercial, or industrial purposes, there is flexibility in both size and shape, with capacities available up to 100,000 liters and dimensions as per your specifications.

Simplified Installation and Maintenance

Featuring an easy bolted assembly, the tank can be installed and relocated with minimal effort due to its modular design. Seamless joints and rust-proof panels minimize leakage risks and reduce maintenance, resulting in a user-friendly, long-lasting water storage solution that remains easy to clean throughout its service life.

FAQ's of Overhead Zinc Aluminium Tank:

Q: How is the Overhead Zinc Aluminium Tank installed on-site?

A: The tank features a modular, panel-bolted assembly that allows for quick and straightforward installation. Its components are lightweight and pre-fabricated, enabling on-site construction without the need for heavy machinery. Relocation is also possible, thanks to its portable design.

Q: What are the benefits of using ZA alloy steel sheets and Galvalume coating in this tank?

A: The use of Zinc-Aluminium alloy steel, combined with Galvalume coating, offers excellent corrosion resistance, ensuring a lifespan of up to 40 years. This material pairing also makes the tank rust-proof and minimizes the risk of water contamination, providing safe long-term storage.

Q: When is thermal insulation recommended for this tank?

A: Thermal insulation is recommended when the stored water is exposed to extreme temperatures or if temperature fluctuations may affect water quality. The optional insulation helps maintain water temperature and protect contents in harsh climates.

Q: Where can this overhead tank be used?

A: The tank is suitable for overhead water storage in residential, commercial, and industrial settings. Its modular design and customizable dimensions allow it to be installed on rooftops or elevated platforms, adapting to various site requirements across India and beyond.

Q: What process is involved in the tank's manufacturing and finishing?

A: The tank is made from pre-coated Zinc-Aluminium alloy steel sheets that are roll formed and factory finished. The components undergo precise engineering to achieve tight tolerance specifications, with all joints and surfaces designed for seamless assembly and lasting protection.

Q: How do the tank's features reduce maintenance requirements?

A: Seamless, rust-proof joints prevent leakage and corrosion, ensuring minimal inspection and repairs. The easy-to-clean surface and maintenance-free accessories such as manhole and drain valve further simplify upkeep, reducing overall operational costs.

Q: What is the typical usage and main benefit of this overhead tank?

A: Primarily used for storing water in overhead applications, this tank offers efficient, hygienic, and long-lasting storage with customizable capacity and dimensions. Its low-maintenance, highly durable design provides significant savings in replacement and repairs over its lifespan.
