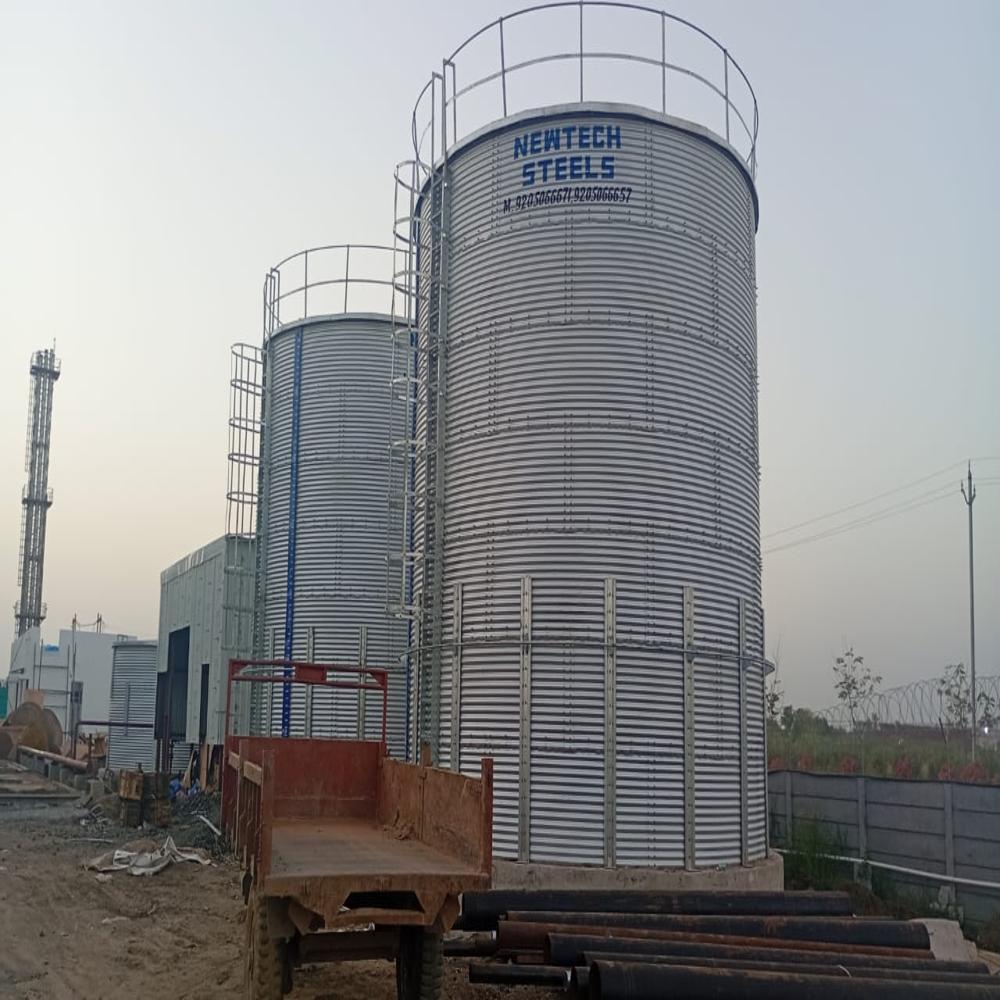

600 KL Fire Fighting Water Storage Tank

Name: 600 KL Fire Fighting Water Storage Tank
Brand: NEWTECH STEELS INDUSTRIES PRIVATE LIMITED
Price: 8.75 INR
Availability: InStock

Price 8.75 INR/ Liter

Get a Price/Quote

MOQ : 10000 Liters

600 KL Fire Fighting Water Storage Tank Specification

Grade
IS 2062 / SS304 / SS316 as per requirement

Dimension (L*W*H)
Customized as per site requirement (approx. diameter 7.5m x height 13.6m for 600 KL)

Storage Material
Water

Condition
NEW

Thickness
3mm to 8mm (as per design and height)

Temperature
Ambient (up to 60C maximum water storage temperature)

Shape
Cylindrical / Vertical

Processing
Hot Dip Galvanized / Fabricated

Capacity
600 KL (600,000 Liters)

Tolerance
2% on dimensions and capacity

Application
Industrial

Material
Mild Steel, Stainless Steel, Galvanized Steel

Size
600 KL

Product Type
Fire Fighting Water Storage Tank

Color
Grey paint coated

Connection Flanges
MS/SS with drilled holes as per IS/ANSI standards

Tank Roof Type
Dome or Flat (as per site condition)

Installation
Bolted or Welded at site

External Coating
Zinc Aluminium or Epoxy Paint

Life Expectancy
>20 Years with proper maintenance

Foundation Requirement
RCC Ring / Pad as per site layout

Corrosion Resistance
High (Epoxy / Zinc Coated)

Internal Coating
Food Grade Epoxy Paint (optional as per client)

Outlet/Inlet Diameter
DN100, DN150, DN200 (customized)

Manhole Size
600 mm (customizable)

Accessories
Ladder, Level Indicator, Overflow, Drain, Air Vent

Design Standard
IS 3370, IS 2062, AWWA D103-97

Seismic Rating
Optional - Designed as per Zone IV/V requirements

600 KL Fire Fighting Water Storage Tank Trade Information

Minimum Order Quantity
10000 Liters

Supply Ability
10 Liters Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About 600 KL Fire Fighting Water Storage Tank

Zincalume Tata Bluescope made marine grade Zinc-Alume -Silicon Alloy steel of AZ 150 or AZ 200,Yield strength of minimum 300 MPa to maximum 550 MPa depending on the application.ZINCALUME steel complies with AS1397, ASTM A792M, IS 15961 and ISO 9364 standards. Zincalume Bolted Panel Tanks are fabricated using the best grade of Steel as MOC which is coated with 55% Aluminium, 43.5% Zinc & 1.5% Silicon. Hence, they are known as Zinc Aluminium Tanks or Galvalume Tanks. It is lightweight, durable and versatile. Zincalume sheet has 40-50 years of life and comes with 20 years of Corrosion Warranty. These tanks last up to four times longer than galvanized steel.

Exceptional Corrosion Resistance

Our 600 KL tank is designed to endure harsh environments by utilizing high-quality epoxy or zinc coatings on both internal and external surfaces. Optional food-grade epoxy ensures safe water storage, while the external protection guards against rust, extending the tank's lifespan and minimizing maintenance needs.

Built to International Standards

Manufactured according to IS 3370, IS 2062, and AWWA D103-97, this water storage tank delivers uncompromising safety and reliability. Its robust construction, coupled with tailored seismic ratings for Zone IV/V, meets rigorous industrial requirements, ensuring the tank's stability even in challenging conditions.

Customizable to Site Requirements

Every installation is unique. That's why the 600 KL tank features customizable diameters, heights, and connections, allowing seamless integration into various site layouts. With options for dome or flat roofing, MS/SS flanges, and adjustable manhole sizing, it adapts perfectly to your fire safety and site needs.

FAQ's of 600 KL Fire Fighting Water Storage Tank:

Q: How is the 600 KL fire fighting water storage tank protected against corrosion?

A: The tank employs high-performance epoxy or zinc coatings on exterior and interior surfaces, providing superior corrosion resistance. An optional food-grade epoxy is available for internal surfaces if potable water standards are needed.

Q: What installation processes are available for this storage tank?

A: The tank can be installed using either bolted or welded assembly methods at the site, allowing flexibility based on your specific location and requirements. The foundation typically requires an RCC ring or pad as per the site layout.

Q: When should the tank's internal coating be upgraded to food grade epoxy?

A: If the stored water will be used for applications requiring potable standards-such as drinking or food processing-it's recommended to choose the food-grade epoxy internal coating, which can be specified per client request.

Q: Where can this water storage tank be installed?

A: Designed for industrial usage, the tank suits various sites across India, adaptable to locations in seismic Zones IV or V. Its size and foundation can be customized to integrate with most industrial site layouts.

Q: What benefits does the tank's robust design bring to long-term fire safety?

A: Constructed to high industry standards, with corrosion-resistant coatings and optional seismic support, the tank delivers over 20 years of reliable service with proper maintenance, ensuring dependable water availability for fire safety systems.

Q: How can the tank's connections and sizes be customized?

A: Outlet/inlet diameters, manhole dimensions, and connection flanges (MS or SS as per IS/ANSI) can be tailored according to site requirements, ensuring compatibility with existing fire safety infrastructure.
